In high-performance water treatment environments, Dissolved Oxygen (DO) and Oxidation-Reduction Potential (ORP) are two of the most critical control indicators.
Industries such as:
- Aquaculture
- Recirculating Aquaculture Systems (RAS)
- Hydroponics
- Industrial and municipal wastewater treatment
depend on stable DO levels and optimized ORP values to ensure biological balance, pathogen control, and operational efficiency.
Traditional aeration technologies often struggle to maintain stable oxygen transfer efficiency. This is where a Nanobubble Generator fundamentally changes performance standards.
What Is a Nanobubble Generator?
A Nanobubble Generator is an advanced gas–liquid mixing system that produces ultra-fine bubbles typically smaller than 200 nanometers in diameter.
Unlike conventional aeration systems:
- Nanobubbles do not rapidly rise to the surface
- They remain suspended for extended periods
- They possess high internal pressure
- They carry a negative surface charge
These properties dramatically enhance gas dissolution and oxidation capacity in water systems.
Why Dissolved Oxygen (DO) Matters
1. In Aquaculture & RAS
- Improves fish survival rate
- Enhances feed conversion ratio
- Reduces stress response
- Stabilizes nitrification bacteria
Low DO levels can quickly lead to mortality, especially in high-density farming environments.

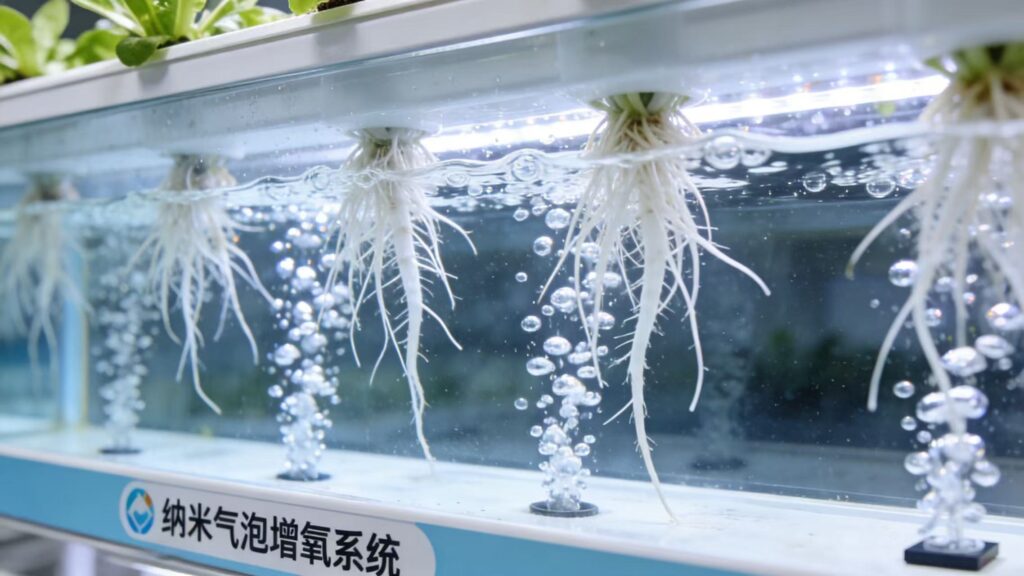

2. In Hydroponics
- Promotes root respiration
- Prevents root rot
- Increases nutrient uptake efficiency
- Accelerates plant growth cycles
Stable oxygen levels directly influence crop yield and quality.
3. In Wastewater Treatment
- Supports aerobic microbial activity
- Enhances organic degradation
- Reduces sludge production
Without adequate DO, biological treatment efficiency drops significantly.
Why ORP Matters
ORP measures the oxidation potential of water.
Higher ORP values indicate:
- Stronger disinfection capacity
- Faster breakdown of organic pollutants
- Improved pathogen inactivation
- Reduced chemical dependency
Maintaining optimal ORP is especially critical when ozone is used in advanced oxidation systems.
How a Nanobubble Generator Increases Dissolved Oxygen
1. Exponentially Increased Surface Area
Smaller bubbles create dramatically larger gas-liquid contact area.
The relationship is not linear — when bubble size decreases, total surface area increases exponentially. This maximizes oxygen transfer efficiency.
2. Extended Suspension Time
Conventional bubbles rise and burst within seconds.
Nanobubbles can remain suspended for hours or even days, allowing:
- Continuous oxygen diffusion
- Stable DO levels
- Reduced fluctuation during load changes
3. Self-Pressurization Effect
Nanobubbles have high internal pressure due to their extremely small radius.
According to physical gas laws, this pressure increases gas solubility in water — meaning more oxygen dissolves into the liquid phase instead of escaping.
4. Reduced Bubble Coalescence
Nanobubbles carry a negative electrostatic surface charge.
This prevents bubbles from merging into larger bubbles, ensuring:
- Long-term stability
- Uniform distribution
- Higher oxygen transfer efficiency
ORP Enhancement with Ozone Nanobubbles
When ozone is introduced through a Nanobubble Generator system, oxidation efficiency increases significantly.
Key Advantages:
1. Higher Oxidation Capacity
Ozone nanobubbles provide greater contact efficiency with contaminants.
2. Improved Pathogen Control
More effective disinfection against:
- Bacteria
- Viruses
- Parasites
3. Faster Organic Breakdown
Enhanced Advanced Oxidation Process (AOP) performance.
4. Reduced Chemical Usage
Better oxidation efficiency means lower chemical dosing requirements, reducing operational costs and environmental impact.
This makes nanobubble ozone systems ideal for:
- Advanced wastewater treatment
- RAS biosecurity control
- Industrial effluent polishing
Performance Comparison
| Technology | DO Stability | ORP Increase | Energy Efficiency |
|---|---|---|---|
| Air Stone | Low | Minimal | Low |
| Venturi System | Medium | Moderate | Medium |
| Nanobubble Generator | Very High | Significant | High |
Nanobubble systems consistently outperform conventional aeration technologies in both stability and oxidation performance.
Return on Investment (ROI)
Upgrading to a Nanobubble Generator delivers measurable economic benefits:
In Aquaculture
- Reduced fish mortality
- Improved growth rates
- Lower disease treatment costs
In Hydroponics
- Increased crop yield
- Shorter harvest cycles
- Reduced root disease incidence
In Wastewater Treatment
- Faster pollutant degradation
- Reduced sludge volume
- Lower chemical consumption
The result is higher productivity with lower operational cost per cubic meter treated.
Frequently Asked Questions (FAQ)
Q1: Can a Nanobubble Generator replace traditional aeration completely?
In many applications, yes. It can either replace or significantly reduce dependence on conventional aeration systems.
Q2: Does it work with oxygen only?
No. It can operate with air, pure oxygen, ozone, and other gases depending on application requirements.
Q3: How long do nanobubbles remain in water?
Depending on system design and water quality, they can remain suspended from several hours to days.
Q4: Is energy consumption high?
Modern systems are optimized for energy efficiency and often reduce total energy usage due to improved transfer rates.
Conclusion
A Nanobubble Generator represents one of the most efficient and advanced methods for increasing dissolved oxygen and enhancing oxidation-reduction potential in modern water systems.
By combining:
- Superior gas-liquid contact
- Extended suspension time
- Self-pressurization effects
- Stable electrostatic properties
Nanobubble technology delivers unmatched DO stability and ORP enhancement across aquaculture, hydroponics, and wastewater treatment industries.
Yuxun’s Technical Strength
Yuxun engineers high-efficiency Nanobubble Generator systems optimized specifically for oxygen transfer and ozone oxidation performance.
Core Technical Advantages:
- Precision flow control design
- High-shear cavitation optimization
- Industrial-grade pump matching
- Long-term DO & ORP performance validation
- Custom solutions for large-scale farms and treatment plants
Yuxun focuses on measurable results:
- Stable DO levels
- Optimized ORP performance
- Energy-efficient operation
- Scalable commercial deployment
For clients seeking reliable, data-driven oxygenation and oxidation solutions, Yuxun delivers engineering expertise backed by performance validation and industry experience.
